Safety Ontology

Latest version:
https://cogito.iot.linkeddata.es/safety#
Revision:
0.6.0
Authors:
María Poveda Villalón
Raúl García Castro
Socorro Bernardos Galindo
Download serialization:
JSON-LD RDF/XML N-Triples TTL
License:
http://purl.org/NET/rdflicense/cc-by4.0
Cite as:
María Poveda Villalón,Raúl García Castro,Socorro Bernardos Galindo. Safety Ontology. Revision: 0.6.0.
Ontology Specification Draft

Abstract

The COGITO Safety ontology aims at modelling the safety of the construction domain.

Introduction back to ToC

This document describes the results of the Safety ontology for the COGITO project.

Namespace declarations

Table 1: Namespaces used in the document
safety<https://cogito.iot.linkeddata.es/safety#>
sf<http://www.opengis.net/ont/sf>
owl<http://www.w3.org/2002/07/owl>
rdf<http://www.w3.org/1999/02/22-rdf-syntax-ns>
terms<http://purl.org/dc/terms>
resource<https://cogito.iot.linkeddata.es/def/resource>
xml<http://www.w3.org/XML/1998/namespace>
xsd<http://www.w3.org/2001/XMLSchema>
dcterms<http://purl.org/dc/terms>
rdfs<http://www.w3.org/2000/01/rdf-schema>
facility<https://cogito.iot.linkeddata.es/def/facility>
dc<http://purl.org/dc/elements/1.1>

Safety Ontology: Overview back to ToC

This ontology has the following classes and properties.

Classes

Object Properties

Data Properties

Safety Ontology: Description back to ToC

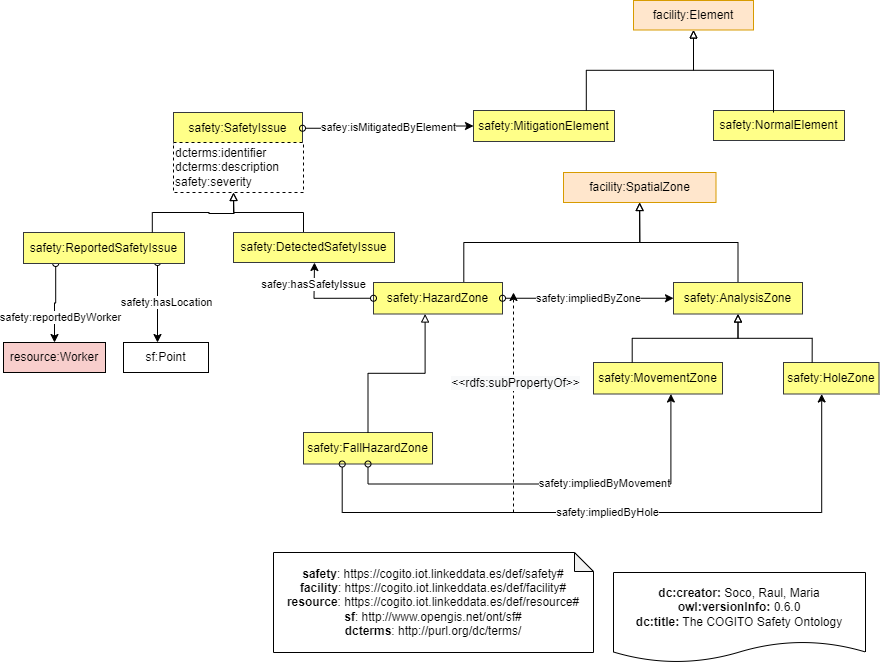

The following diagram reflects how the classes of the ontology are related.
General overview of the COGITO safety ontology.

Cross reference for Safety Ontology classes, properties and dataproperties back to ToC

This section provides details for each class and property defined by Safety Ontology.

Classes

Analysis Zonec back to ToC or Class ToC

IRI: https://cogito.iot.linkeddata.es/safety#AnalysisZone

A spatial zone that is inspected
has super-classes
Spatial Zone c
has sub-classes
Hole Zone c, Movement Zone c
is in range of
implied by zone op

Detected Safety Issuec back to ToC or Class ToC

IRI: https://cogito.iot.linkeddata.es/safety#DetectedSafetyIssue

A safey problem that has been automatically detected
has super-classes
Safety Issue c
is in range of
has safety issue op

Elementc back to ToC or Class ToC

IRI: https://cogito.iot.linkeddata.es/def/facility#Element

A subclass or bot:Element and, as such, a constituent of a construction entity with a characteristic technical function, form, or position.
has sub-classes
Mitigation Element c, Normal Element c

Fall Hazard Zonec back to ToC or Class ToC

IRI: https://cogito.iot.linkeddata.es/safety#FallHazardZone

A hazard zone where somebody can fall
has super-classes
Hazard Zone c

Hazard Zonec back to ToC or Class ToC

IRI: https://cogito.iot.linkeddata.es/safety#HazardZone

An spatial zone defining a safety hazard
has super-classes
Spatial Zone c
has sub-classes
Fall Hazard Zone c

Hole Zonec back to ToC or Class ToC

IRI: https://cogito.iot.linkeddata.es/safety#HoleZone

An analysis zone defining a hole
has super-classes
Analysis Zone c
is in range of
implied by hole op

Mitigation Elementc back to ToC or Class ToC

IRI: https://cogito.iot.linkeddata.es/safety#MitigationElement

An element used to mitigate a safety hazard
has super-classes
Element c
is in range of
is mitigated by element op

Movement Zonec back to ToC or Class ToC

IRI: https://cogito.iot.linkeddata.es/safety#MovementZone

An analysis zone where somebody can move
has super-classes
Analysis Zone c
is in range of
implied by movement op

Normal Elementc back to ToC or Class ToC

IRI: https://cogito.iot.linkeddata.es/safety#NormalElement

An element not used for safety during the construction process
has super-classes
Element c

Pointc back to ToC or Class ToC

IRI: http://www.opengis.net/ont/sf#Point

Is defined by
http://www.opengis.net/ont/sf#
is in range of
has location op

Reported Safety Issuec back to ToC or Class ToC

IRI: https://cogito.iot.linkeddata.es/safety#ReportedSafetyIssue

A safey problem that has been reported by a worker
has super-classes
Safety Issue c

Safety Issuec back to ToC or Class ToC

IRI: https://cogito.iot.linkeddata.es/safety#SafetyIssue

Data regarding a safety problem
has sub-classes
Detected Safety Issue c, Reported Safety Issue c

Spatial Zonec back to ToC or Class ToC

IRI: https://cogito.iot.linkeddata.es/def/facility#SpatialZone

A subclass of bot:Zone and, as such, a part of the physical or a virtual world that is inherently both located in this world and has a 3D spatial extent.
has sub-classes
Analysis Zone c, Hazard Zone c

Workerc back to ToC or Class ToC

IRI: https://cogito.iot.linkeddata.es/def/resource#Worker

A human resource that works in a project (especially performing a process:Task)
is in range of
reported by worker op

Object Properties

has locationop back to ToC or Object Property ToC

IRI: https://cogito.iot.linkeddata.es/safety#hasLocation

Property that relates an entity (especially a safety:ReportedSafetyIssue) to a sf:Point indicating its location
has range
Point c

has safety issueop back to ToC or Object Property ToC

IRI: https://cogito.iot.linkeddata.es/safety#hasSafetyIssue

Property that relates an entity (especially a safety:HazardZone) to a safety:DetectedSafetyIssue
has range
Detected Safety Issue c

implied by holeop back to ToC or Object Property ToC

IRI: https://cogito.iot.linkeddata.es/safety#impliedByHole

A safety:impliedByZone sub-property whose range is a safety:HoleZone
has super-properties
implied by zone op
has range
Hole Zone c

implied by movementop back to ToC or Object Property ToC

IRI: https://cogito.iot.linkeddata.es/safety#ImpliedByMovement

A safety:impliedByZone sub-property whose range is a safety:MovementZone
has super-properties
implied by zone op
has range
Movement Zone c

implied by zoneop back to ToC or Object Property ToC

IRI: https://cogito.iot.linkeddata.es/safety#impliedByZone

A property relating an entity (especially a safety:HazardZone) to the safety:AnalysisZones that define it
has super-properties
top object property
has sub-properties
implied by hole op, implied by movement op
has range
Analysis Zone c

is mitigated by elementop back to ToC or Object Property ToC

IRI: https://cogito.iot.linkeddata.es/safety#isMitigatedByElement

A property relating an entity (especially a safety:SafetyIssue) to a safety:MitigationElement used to mitigate it
has range
Mitigation Element c

reported by workerop back to ToC or Object Property ToC

IRI: https://cogito.iot.linkeddata.es/safety#reportedByWorker

Property that relates an entity (especially a safety:ReportedSafetyIssue) to a resource:Worker indicating the person who has reported it
has range
Worker c

Data Properties

descriptiondp back to ToC or Data Property ToC

IRI: http://purl.org/dc/terms/description

Is defined by
https://cogito.iot.linkeddata.es/safety#

identifierdp back to ToC or Data Property ToC

IRI: http://purl.org/dc/terms/identifier

Is defined by
http://purl.org/dc/terms

severitydp back to ToC or Data Property ToC

IRI: https://cogito.iot.linkeddata.es/safety#severity

Property indicating de severity of a safety hazard

titledp back to ToC or Data Property ToC

IRI: http://purl.org/dc/terms/title

Is defined by
http://purl.org/dc/terms

Legend back to ToC

c: Classes
op: Object Properties
dp: Data Properties
ni: Named Individuals

Acknowledgments back to ToC

The authors would like to thank Silvio Peroni for developing LODE, a Live OWL Documentation Environment, which is used for representing the Cross Referencing Section of this document and Daniel Garijo for developing Widoco, the program used to create the template used in this documentation.

The development of the COGITO ontologies has received funding from the European Union’s Horizon 2020 research and innovation programme under grant agreement No 958310.
